| BASIC INFO |
| Model No. |
WinPad W86 |
| Operating system |
Windows 10 |
| Dimension |
228*145*16.5 mm |
| Weight |
737g (not including dock) |
| Material |
Metal back cover |
| Colour |
Black, silver |
| Language |
English, Chinese and other languages |
| HARDWARE |
| Display |
8 inches 16:10 anti-scratched capacitive touch screen, 1280*800px, support handwriting input |
| Processor |
Intel Baytrail-T Z3735F quad-core, 1.33Ghz--1.8GHz; GPU: Intel® HD Graphics (Gen 7) |
| RAM |
2 GB DDR3L |
| Hard drive |
32 GB EMMC, support TF card up to 64 GB max (64 GB/128 GB Optional for OEM order) |
| Camera |
Double cameras, 2.0MP front camera, 5.0MP back camera |
| Battery |
Built-in 3.7V 8500mAh Li-ion battery, working time up to 8 hours |
| Sensor |
Gravity sensor |
| Speaker |
2*Built-in 8 Ω/0.8W speaker |
| NETWORK & CONNECTIVITY |
| Bands |
3G: WCDMA 900/2100MHz |
| Wi-Fi |
Yes, IEEE802.11(a/b/g/n), 2.4G+5.8G dual-band Wi-Fi |
| BT |
V4.0, BLE |
| GNSS |
Support GPS/GLONASS/QZSS |
| NFC |
Yes, NXP NFC 13.56MHz |
| I/O INTERFACES |
| USB 2.0 port |
*1 |
| Microphone |
*1 |
| 12 Pogo Pin |
*1 |
| 3.5 mm earphone jack |
*1 |
| HD-MI |
Yes, HDMI 1.4A |
| MULTIMEDIA |
| Video |
MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG.(up to 1080P) |
| Audio |
MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3 |
| Others |
Support Flash 11, HTML 5, Office, etc |
| FEATURES |
| 1D Barcode |
Optional (add $55) |
| 2D Barcode |
Optional (add $210) |
| RELIABILITY |
Waterproof/Dust-proof
|
IP67 |
| Drop-proof |
Anti 1.2 m drop |
| Working temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Storage temperature |
-30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity |
95% Non-Condensing |

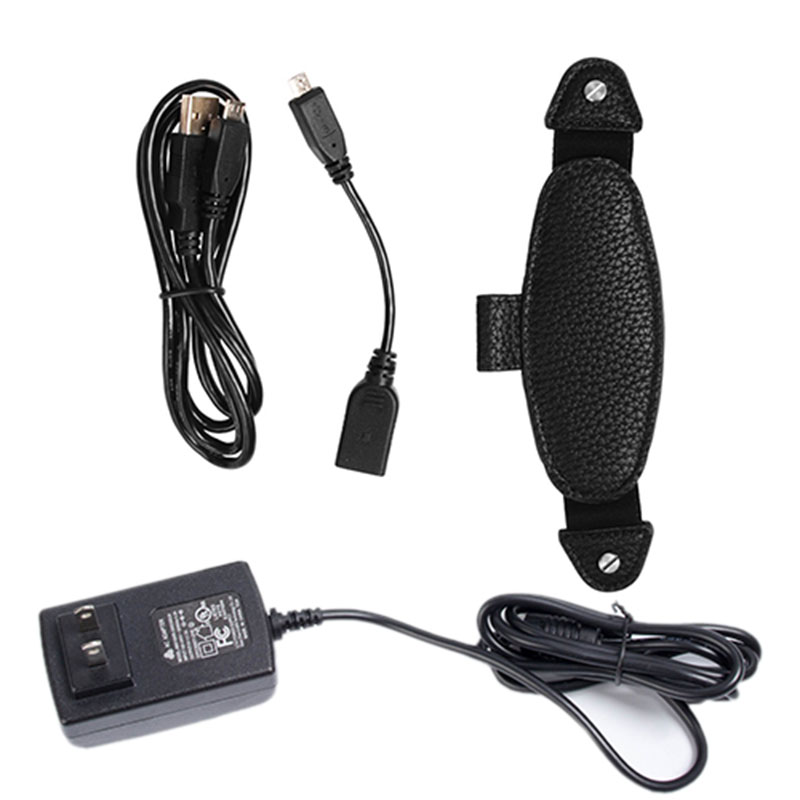

| ACCESSORIES |
| OTG cable |
*1 |
| USB cable |
*1 |
| Belt |
*1 |
| Charger |
*1 |
| Dock |
*1 (optional, if needed, please add $30) |
MOQ: 100PCS
