BASIC INFO |
Model No. |
UNIWA HS002 |
Operating system |
Android 10.0 |
Type |
Handheld |
Dimension |
162*71.5*17 mm |
Weight |
<300g |
Languages |
Simplified/Traditional Chinese, English, Spanish, Portuguese, French, Deutsch, Polish, Dutch, |
Korean, Japanese, Malaysian, etc. |
HARDWARE |
Display |
4-inch TN capacitive touch screen, 800*480px |
Processor |
MT6739 Cortex A53 Quad core 64 bits, 1.3GHz |
RAM |
2 GB RAM |
ROM |
16 GB ROM, support TF card extension up to 128 GB maximally |
Camera |
Front camera: 5MP |
Rear camera: 8MP HD AF camera with flash, Anti-shake, Macro shooting |
Battery |
Removable 3.8V/4500mAh polymer battery |
Sensors |
Gravity sensor, light sensor, proximity sensor, vibrator |
NETWORK & CONNECTIVITY |
Bands |
2G: GSM 850/900/1800/1900MHz |
3G: WCDMA 850/900/1900/2100MHz |
4G: FDD-LTE B1/B2/B3/B5/B7/B8/B20; TDD-LTE B38/B41 |
Wi-Fi |
IEEE 802 a/b/g/n/ac, support 2.4GHz/5GHz dual-band Wi-Fi |
BT |
V4.0+HS, Transmission distance 5-10 m |
GNSS |
Support GPS/A-GPS |
I/O INTERFACES |
Nano SIM card slot |
*2 (Nano SIM+PSAM optional) |
TF card slot |
*1 |
USB Type-C |
*1, support OTG function |
POGO Pin |
*1 |
Speaker |
Mono |
Mic |
Support |
Receiver |
Support |
Keypad |
25 soft and hard rubber buttons, left button*1, right button*1 |
FEATURES |

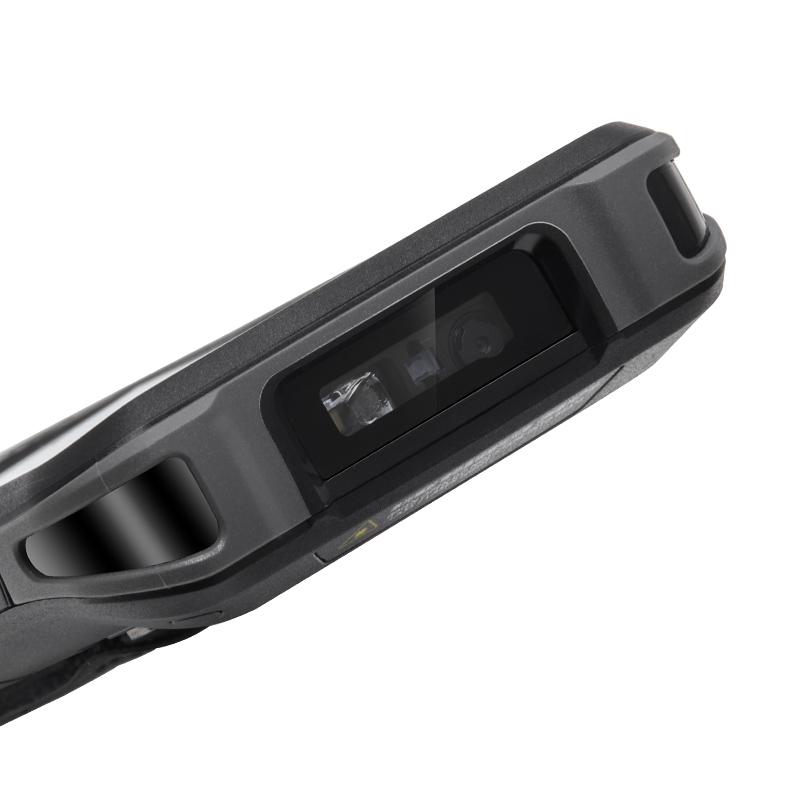

2D Module |
Mindeo E483/ EM6601, Honeywell N6603/ N3603 |
2D Symbologies |
PDF417, MicroPDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin Code, etc. |
RELIABILITY |
Waterproof |
IP66 |
Drop-proof |
6 sides can withstand 1.2 m height, 30 impacts on the concrete floor |
Rolling test |
500*0.5 m rolling for 6 sides |
Temperature range |
Operating: -20℃~55℃ Storage: -40℃~70℃ |
Humidity range |
5%RH--95%RH (no condensation) |
Options |
NFC |
Optional |
1D |
Optional |
Processor |
MT6761/MT6762 Optional |
ACCESSORIES |
Adapter |
*1 |
Data cable |
*1 |
Protective film |
*1 |
Instruction manual |
*1 |
