WinPad W103 10.1 Inch Glove Touch Intel i5 WiFi 6 IP65 Windows 11 Rugged Industrial Tablet PC

Model: WinPad W103

1) 10.1 Inch High Brightness Glove Touch Screen
2) IP65 Waterproof Industrial Design
3) Windows 10/11 Home or iOT OS
4) 12th Gen Intel Core i5 10C12T Processor
5) 16GB RAM+256GB SSD
6) RS232/RJ45/USB3.0/Aviation Connector Rich I/O Ports
7) Working in -30℃ Ultra-low Temperature Environment
8) Removable 7.6V/10000mAh Battery
9) Support 4G Module and WiFi 6
10) Built-in UB M7N GNSS Chipset
11) NFC/RFID/ID Card/ 2D Modules Optional

MOQ: 100PCS

Free Inquiry

Specification

Feature

WinPad W103 10.1 Inch Glove Touch Intel i5 WiFi 6 16GB RAM 256GB SSD RS232 GNSS 4G IP65 Windows 11 Rugged Industrial Tablet PC

BASIC INFO
Model No.	WinPad W103
Operating system	Windows 10/11 home/iOT
Dimension	277.48182.7421.5mm
Weight	1405g
Material	Metal+Plastic
Color	Black
Language	Multi-language
HARDWARE
Screen	10.1 inch 7H IPS capacitive glove touch screen, 1280800px, 550cd/㎡ (19201200 or 1000cd/㎡ optional)
Processor	Intel Core 12th Generation i5-1235U 10C12T, 4.4GHz; GPU: Iris Xe Graphics eligible (i7-1255U optional)
RAM	16GB RAM (32GB optional)
ROM	256GB ROM (128GB/512GB/1TB/2TB optional), support TF card extension up to 1TB max
Camera	Double cameras: 8MP AF rear camera, 5MP front camera
Battery	Removable 7.6V/10000mAh lithium polymer battery
Sensor	Gravity sensor
Speaker	*2, 1.2W/8Ω
Mic	*1, sensitivity: -32±2d, output impedance: 2.2kΩ

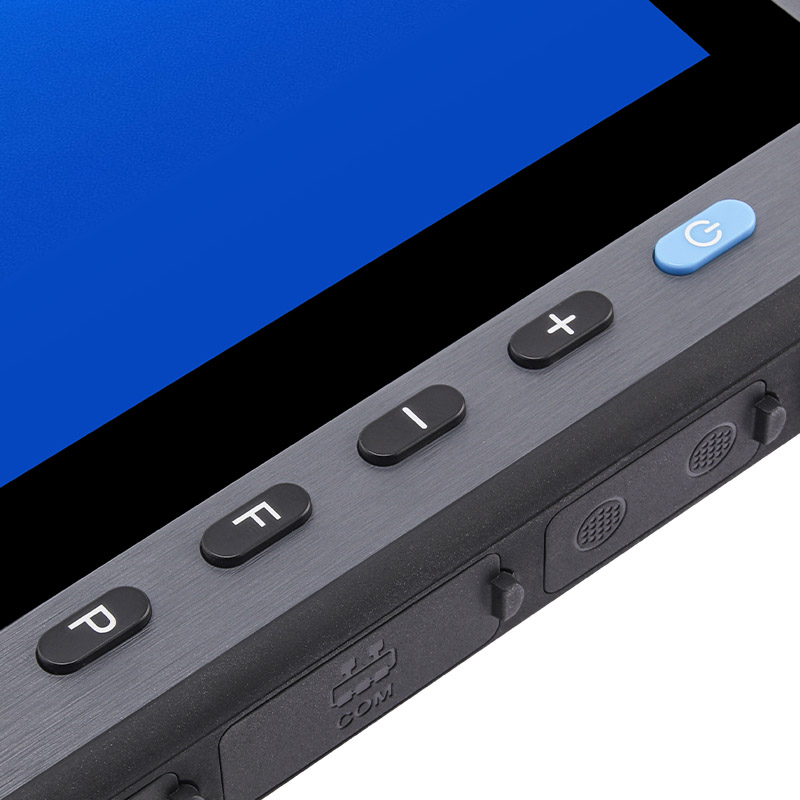

Buttons	Power Button, Volume+/-, P key, F key
LED Indicator	RGB
NETWORK & CONNECTIVITY
Network Bands	2G: GSM 900/1800MHz
	3G: WCDMA 850/900/2100MHz
	4G: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B38/B40/B41
WiFi	IEEE 802.11 a/b/g/n/ac/ax, support wifi6
BT	V5.2(BLE)
GNSS	UB M7N, support GPS/A-GPS/GLONASS/Galileo/Beidou
I/O INTERFACES
USB Type-A 3.0	*1
USB Type-C 2.0	*1
RJ45 Port (100/1000Mbps)	*1
DC-IN Port	*1
Mini HD-MI	*1
RS232	*1
Aviation Connector	*1 (USB/DC5V/CAN BUS)
RS232	*1
3.5mm Audio Jack	*1
TF Card Slot	*1
Pogo Pin	*1
SIM Slot	*1
Multimedia
Image format	BMP, JPG, GIF, PNG
Video format	MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (up to 1080P)
Audio format	MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
OPTIONAL FUNCTIONS
NFC	Optional (13.56MHz, support 14443A/14443B/15693 protocols etc.)
RFID	Optional (PR9200, distance 1.5~8 meters)
ID Card	Optional
1D Barcode Module	Optional (Zebra SE655)
2D Barcode Module	Optional (Honeywell N4680)
Active Pen	Optional
RELIABILITY
Waterproof	IP65
Drop-proof	1.2m
Temperature Range	Operating: -30℃~60℃; Storage: -40℃~70℃
STANDARD ACCESSORIES
Power adaptor (19V/4A)	*1
USB Cable	*1
Hand strap	Optional
Car Mount	Optional
Charging dock	Optional
OTG cable	Optional
